繁體中文Industrial Coil Heater
THOMAS CO., LTD. is a leading manufacturer and supplier of a wide range of Industrial Coil Heater in Taiwan. We adhere to the spirit of "Solidarity, Struggle, Innovation, and Work devotion." Our company has passed the ISO Quality management certificate, and all the products got the certificate. We seek satisfaction from our customers, and we see the market demands as a direction to consistently improve our quality and develop new products. Our aim is quality first, credit standing, and winning the market. We insisted on good quality, good credit, good service, and competitive prices and cooperated with the customer. All friends are welcome to contact us to set up a business relationship.
Industrial Coil Heater

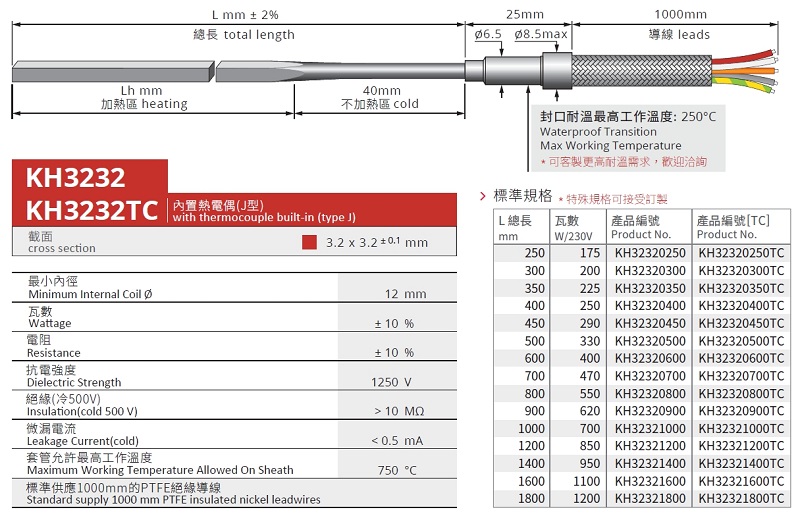

Model - Minitubular Heater KH3.2X3.2
- NiCr 80/20 resistance wire
- High purity compacted magnesium oxide
- CrNi steel or SUS310 or SUS321 steel sheath
- Built-in thermocouple type J
- Tig welded bottom disc
- PTFE insulated nickel leadwires
Introduction
A solution to the most difficult requirements, possible to work under high working temperature and limited spaces.
Can manufacture to different lengths, wattages, sections, and built-in J or K type thermocouples according to needs.
Applications
Hot Runner Systems
Plastics Industry
Engineering Industry
Shoe Industry
Home appliance technology
Casting Industry
High Vacuum Aapplications
Packaging Machines
Technical Data
We offer
Industrial Coil Heater
in various specifications to cater to the diverse needs of clients. We realize the importance of the job & information we handle. We understand the responsibility that each member of our team has to shoulder, and we do that with the highest levels of trust, honesty, and integrity of purpose and action.Enquiry Now
Products List
NiCr 80/20 resistance wire
High purity compacted magnesium oxide
Nickel or stainless steel sheath
PTFE insulated nickel leadwires
Introduction
A solution to the most difficult requirements, possible to work under high working temperature and limited spaces.
Used for the best performance and various applications.
Applications
Used in the plastics industry for the heating of nozzles and hotrunner tooling.
Generally applied on where space is restricted.
Technical Data
NiCr80/20 resistance wire
High purity compacted magnesium oxide
CrNi steel or SUS310 or SUS321 steel sheath
Built-in thermocouple type J
Tig welded bottom disc
PTFE insulated nickel leadwires
Introduction
Apply solutions to difficult requirements, possible to work under high working temperature and limited spaces.
Can manufacture to different lengths, wattages, sections, and built-in J or K type thermocouples according to needs.
Applications
Hot Runner Systems
Plastics Industry
Engineering Industry
Shoe Industry
Home appliance technology
Casting Industry
High Vacuum Aapplications
Packaging Machines
Technical Data
NiCr80/20 resistance wire
High purity compacted magnesium oxide
Stainless steel sheath
Solid stainless steel terminal
Ceramic end cap
Introduction
Capable of being formed into virtually any configuration.
The range of ratings, sizes, materials and terminations available makes the tubular heater adaptable to many industrial, commercial, and scientific applications.
Applications
Used in pastics industry for the heating of Hot runner manifold plates tooling.
Flexbile Heaters enables heat to be located directly to the resin flow path with three dimensional heat distribution.
Technical Data
NiCr80/20 resistance wire
High purity compacted magnesium oxide
CrNi steel or SUS321 steel sheath
PTFE insulated nickel leadwires
Introduction
much uniformed heating conductivity and better fitting with tools for advanced appliances.
Several lengths, wattage, Inner and outer diameters can be supplied.
Applications
Specialized in Plastic Industrial nozzles and hot runner components,
prioritized under limited space.
Technical Data
Stainless steel clamping band
Mica insulation
NiCr alloy
Aluminized steel
Fiberglass insulated lead wire (Axial exit)
Introduction
Mica insulated band heater can perform at higher operating temperatures.
Long-live and efficient band heater is the key for high productivity of plastic extruders, injection and blow molding machines.
Applications
Used in the pastics industry of plastic extruders, injection and blow molding machines.
prioritized under limited space.
Technical Data
Silicone-rubber insulating layer
Heating resistor
Insulated lead wire
Introduction
The light and easy-to-shape silicone rubber material is used as the external heat-resistant insulating layer, which has fast, uniform heating, and high thermal efficiency features. It can be widely used as it can be customized to a variety of shapes.
Applications
Plastics Industry
Engineering Industry
Shoe Industry
Home appliance technology
Packaging Machines
NiCr80/20 resistance wire
High purity compacted magnesium oxide
Nickel or stainless steel sheath
PTFE insulated nickel leadwires
Introduction
Easy to assemble, economical solutions for the hot runner nozzle.
The coiled and pressed clamp heater ensures best heat contact with the nozzle.
The coiling is precisely designed to suit specific heat requirements.
Technical Data
