Clamp Heater

Catalog

THOMAS CO., LTD. is the leading Taiwan manufacturer, supplier, and exporter of Clamp Heater. We manufacture using the finest quality raw material and components. Our skilled professionals manufacture this product using advanced technology and quality material to ensure durability and high quality. We are best known for satisfying customers with the efficiency and long last lasting ability of our products. If more models of our products are wanted, please contact us now!

Share to：

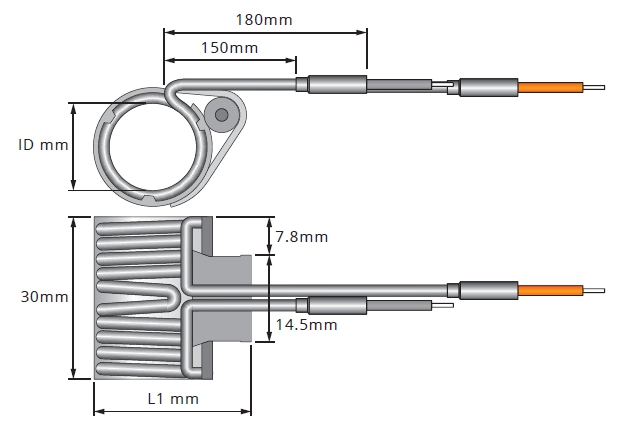

Clamp Heater

Model - Clamp Heaters

NiCr80/20 resistance wire
High purity compacted magnesium oxide
Nickel or stainless steel sheath
PTFE insulated nickel leadwires

Introduction
Easy to assemble, economical solutions for the hot runner nozzle.
The coiled and pressed clamp heater ensures best heat contact with the nozzle.
The coiling is precisely designed to suit specific heat requirements.

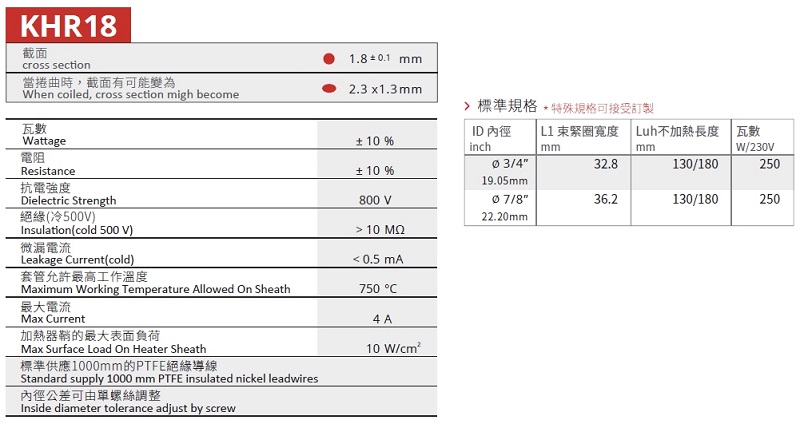

Technical Data

The whole staff with full-hearted service of

Clamp Heater

for our customers to engage in the expanding tides of industry. We believe that after-sale service starts with the design and manufacture of a strict quality assurance system.

Enquiry Now

* Required

To: THOMAS CO., LTD.

*Subject:

Enquiry Details

Incoterm:

Payment:

Initial Order Quantity:

Sample Terms:

*Message:

Please provide following contact details

Title:

Mr.

Ms.

Mrs.

*First Name:

*Last Name:

*Company:

*Country/Territory:

Address:

*E-mail:

*Telephone:

Fax:

URL:

*Prove code:

Click Refresh Prove code

Products List

View Detail

Nozzle Coil Heater

Minitubular Heaters KH1.8

NiCr 80/20 resistance wire High purity compacted magnesium oxide Nickel or stainless steel sheath PTFE insulated nickel leadwires Introduction A solution to the most difficult requirements, possible to work under high working temperature and limited spaces. Used for the best performance and various applications. Applications Used in the plastics industry for the heating of nozzles and hotrunner tooling. Generally applied on where space is restricted. Technical Data

View Detail

Industrial Coil Heater

Minitubular Heater KH3.2X3.2

NiCr 80/20 resistance wire High purity compacted magnesium oxide CrNi steel or SUS310 or SUS321 steel sheath Built-in thermocouple type J Tig welded bottom disc PTFE insulated nickel leadwires Introduction A solution to the most difficult requirements, possible to work under high working temperature and limited spaces. Can manufacture to different lengths, wattages, sections, and built-in J or K type thermocouples according to needs. Applications Hot Runner Systems Plastics Industry Engineering Industry Shoe Industry Home appliance technology Casting Industry High Vacuum Aapplications Packaging Machines Technical Data

View Detail

Hot Runner Coil Heater

Minitubular Heater KH4.3X2.2

NiCr80/20 resistance wire High purity compacted magnesium oxide CrNi steel or SUS310 or SUS321 steel sheath Built-in thermocouple type J Tig welded bottom disc PTFE insulated nickel leadwires Introduction Apply solutions to difficult requirements, possible to work under high working temperature and limited spaces. Can manufacture to different lengths, wattages, sections, and built-in J or K type thermocouples according to needs. Applications Hot Runner Systems Plastics Industry Engineering Industry Shoe Industry Home appliance technology Casting Industry High Vacuum Aapplications Packaging Machines Technical Data

View Detail

Electric Heating Tube

Tubular Heater

NiCr80/20 resistance wire High purity compacted magnesium oxide Stainless steel sheath Solid stainless steel terminal Ceramic end cap Introduction Capable of being formed into virtually any configuration. The range of ratings, sizes, materials and terminations available makes the tubular heater adaptable to many industrial, commercial, and scientific applications. Applications Used in pastics industry for the heating of Hot runner manifold plates tooling. Flexbile Heaters enables heat to be located directly to the resin flow path with three dimensional heat distribution. Technical Data

View Detail

Copper Coil Heater

Copper Cast-in Heaters

NiCr80/20 resistance wire High purity compacted magnesium oxide CrNi steel or SUS321 steel sheath PTFE insulated nickel leadwires Introduction much uniformed heating conductivity and better fitting with tools for advanced appliances. Several lengths, wattage, Inner and outer diameters can be supplied. Applications Specialized in Plastic Industrial nozzles and hot runner components, prioritized under limited space. Technical Data

View Detail

Band Heater

Band Heaters

Stainless steel clamping band Mica insulation NiCr alloy Aluminized steel Fiberglass insulated lead wire (Axial exit) Introduction Mica insulated band heater can perform at higher operating temperatures. Long-live and efficient band heater is the key for high productivity of plastic extruders, injection and blow molding machines. Applications Used in the pastics industry of plastic extruders, injection and blow molding machines. prioritized under limited space. Technical Data

View Detail

Silicone Heater

Band Heaters

Silicone-rubber insulating layer Heating resistor Insulated lead wire Introduction The light and easy-to-shape silicone rubber material is used as the external heat-resistant insulating layer, which has fast, uniform heating, and high thermal efficiency features. It can be widely used as it can be customized to a variety of shapes. Applications Plastics Industry Engineering Industry Shoe Industry Home appliance technology Packaging Machines
