Pid Controller
THOMAS CO., LTD. is specialized mainly in designing, manufacturing, and supplying the Pid Controller in Taiwan. The quality of products enjoys a high reputation, and the company is now accredited with ISO certification. We are also the original manufacturer of many well-known companies. Our target: soonest supply the most competitive products; satisfy buyer's requirements with our professional technology, loyal service, perfect control of quality, and the most flexible production system.
Pid Controller

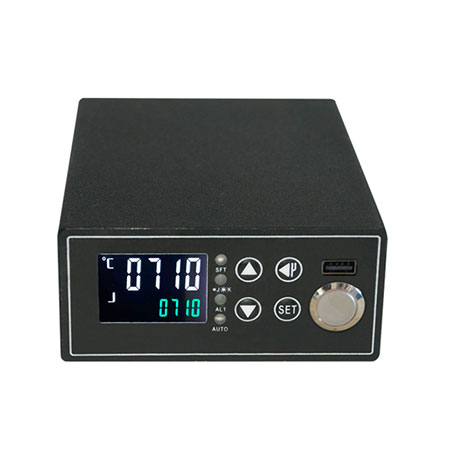

Model - Portable Temperature Controller/ Enail Controller
1/32 DIN
PID Control
CE marking, best option for temperature controller with low cost and high stability
Heater break alarm (HBA) added to increase the overall safety
Other functions available upon request
Technical Data
Specifications
PID Control
CE marking, best option for temperature controller with low cost and high stability
Heater break alarm (HBA) added to increase the overall safety
Other functions available upon request
Technical Data
- Thermocouple short circuit/open circuit protection
Short circuit, open circuit and system short circuit protection. - Live temperature display
Simultaneously display the current value and the set value - Auto / Manual mode
Selectable auto / manual mode, gives user different options under different circumstances. - Plug and use
Automatically detects parts such as the manifold or the nozzle. Can function without manual settings. - Ambient temperature compensation
The change in ambient temperature brings possible uncertainties when it comes to temperature control. AAP controllers contain ambient temperature sensors inside, to compensate the change in ambient temperature automatically, in order to control the temperature precisely. - Compatible with J/K Type thermocouple
Support J and K type thermocouple, user can use either type - Selectable °C/°F Display
Can switch the temperature unit via the menu - Overheating protection
Automatic stops the current output when temperature is over the set value + the limit. The limit value can be set. - Autotuning
AAP controllers focus heavily on power saving, setting the sample rate to 4ms to quickly adjust the output in order to reduce the power consumption.
Specifications
Power | AC110V / 220V |
Frequenct | 50 / 60 Hz |
Power consumption | ~2VA |
Memory | FLASHROM |
Sensor input | (Thermocouple) : K , J Temperature Range 0~800°C Sample Frequency 80 samples / second Precision to 0.1°C Tolerance ±0.5°C (Under normal load) |
Main control output | SSR / TRIAC |
Operatng current | 1320W |
Rated power | 12A |
Control method | PID |
Alarm output | 1a SPST-NO, 250VAC,8A(resistive load) |
Short circuit protection response time | <8ms |
Working temperature and humidity | -10 ~ 50°C (In case of condensation)20%~90% RR |
Storage temperature | -25 ~ 65°C (without condensation) |
Dimension | W48 x H28 x D79 mm |
Weight | ~120 g |
We manufacture & export
Pid Controller
. We have a team of top technology organizations and high efficiency to ensure the timely delivery of high-quality products. For any interested parties, please kindly contact us for further details.Enquiry Now
Products List

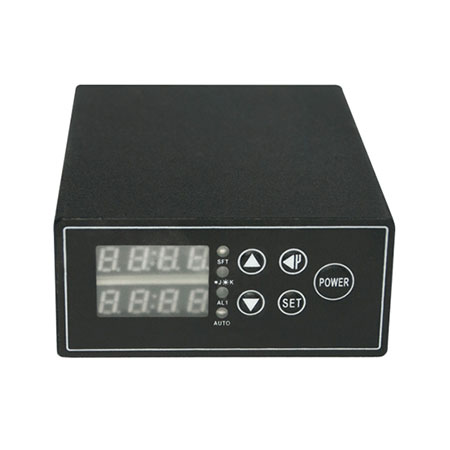

1/16 DIN
PID Control
CE marking, best option for temperature controller with low cost and high stability
Heater break alarm (HBA) added to increase the overall safety
Other functions available upon request
Technical Data
Thermocouple short circuit/open circuit protection
Short circuit, open circuit and system short circuit protection.
Live temperature display
Simultaneously display the current value and the set value
Auto / Manual mode
Selectable auto / manual mode, gives user different options under different circumstances.
Plug and use
Automatically detects parts such as the manifold or the nozzle. Can function without manual settings.
Ambient temperature compensation
The change in ambient temperature brings possible uncertainties when it comes to temperature control. AAP controllers contain ambient temperature sensors inside, to compensate the change in ambient temperature automatically, in order to control the temperature precisely.
Compatible with J/K Type thermocouple
Support J and K type thermocouple, user can use either type
Selectable °C/°F Display
Can switch the temperature unit via the menu
Overheating protection
Automatic stops the current output when temperature is over the set value + the limit. The limit value can be set.
Autotuning
AAP controllers focus heavily on power saving, setting the sample rate to 4ms to quickly adjust the output in order to reduce the power consumption.
Specifications
Power
AC110V / 220V
Frequenct
50 / 60 Hz
Power consumption
~2VA
Memory
FLASHROM
Sensor input
(Thermocouple) : K , J
Temperature Range 0~800°C
Sample Frequency 80 samples / second
Precision to 0.1°C
Tolerance ±0.5°C (Under normal load)
Main control output
SSR / TRIAC
Operatng current
1320W
Rated power
12A
Control method
PID
Alarm output
1a SPST-NO, 250VAC,8A(resistive load)
Short circuit protection response time
<8ms
Working temperature and humidity
-10 ~ 50°C (In case of condensation)20%~90% RR
Storage temperature
-25 ~ 65°C (without condensation)
Dimension
W48 x H48 x D91 mm
Weight
~120 g
