Ejector Pin
We manufacture, supply, and export Ejector Pin of excellent appearance. We also offer the best working relationship with our customers, with many friendly and knowledgeable sales representatives. In addition, we have a strict 3-step quality control system to ensure you are getting the highest quality products made.
Ejector Pin
Model - EJECTOR PIN
INCH STEPPED EJECTOR PIN
MATERIAL: SKD51
HARDNESS: HRC58°~ 62°
UNIT: inch

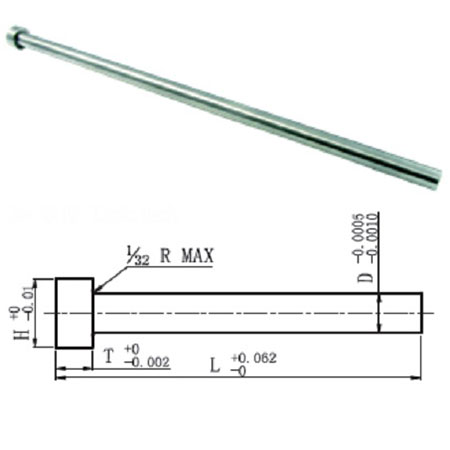

INCH EJECTOR PIN
MATERIAL: SKD51
HARDNESS: HRC40°~ 45°
SURFACE HARDNESS: HV900~
UNIT: inch

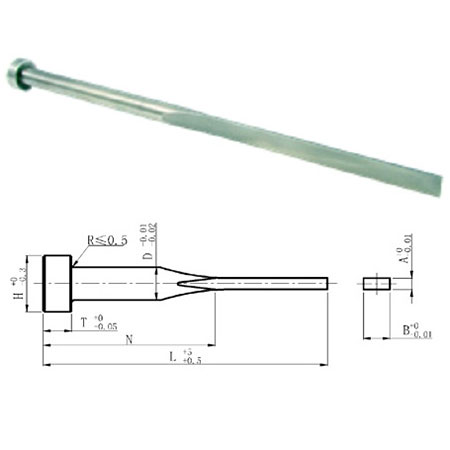

FLAT EJECTOR PIN
MATERIAL: SKD61
HARDNESS: HRC40°~ 45°
SURFACE HARDNESS: HV900~
MATERIAL: SKD51
HARDNESS: HRC58°~ 62°
UNIT: inch
INCH EJECTOR PIN
MATERIAL: SKD51
HARDNESS: HRC40°~ 45°
SURFACE HARDNESS: HV900~
UNIT: inch
FLAT EJECTOR PIN
MATERIAL: SKD61
HARDNESS: HRC40°~ 45°
SURFACE HARDNESS: HV900~
Our
Ejector Pin
products applications are worldwide valued and appreciated by our clients and their end-user customers. We also welcome new clients to discover the quality of goods and services that we have to offer.Enquiry Now
Products List
MATERIAL:SKH51
HARDNESS:HRC58°〜60°
Introduction
Locating ring is a part that is used for attach the injection center to the center of the mold quickly when installing a mold to the injection machine.
Usung the locating ring can significantly reduce the time it needs to match the mold to the machine and also reduce the chanceof damaging the machine.
Applications
The locating ring contains features such as high temperature resistance and wide variety of specifications. Other than using on locating the bush, locating ring can also be used to fix accessories.
Technical Data
BLOCK SET-BSD TYPE
MATERIAL:YK30
HARDNESS:HRC560〜600
MATERIAL:SKD11
HARDNESS:HRC58〜620
UNIT:mm, inch
BLOCK SET-BSG TYPE
UNIT:mm, inch
EJECTOR SLEEVE
MATERIAL: SKD61
HARDNESS: HRC35°~40°
SURFACE HARDNESS: HV900 ~
CAT. NO.: ES-D1
STEPPED EJECTOR SLEEVE
MATERIAL: SKD61
HARDNESS: HRC35°~40°
SURFACE HARDNESS: HV900 ~
INCH EJECTOR SLEEVE
MATERIAL: SKD61
HARDNESS: HRC35°~40°
SURFACE HARDNESS: HV900 ~
UNIT: inch
MATERIAL: SUS420
SPECIFICATION:
Outer case is made by stainless steel and with carbon treatment and grinding machining; reducing the chance of rusting to the least.
Easy to install and very flexible.
While rotating, it will be fixed and got ""TAI-TAI" noise.
Improves the impression of the mold and the product.
CAUSION:
Set-up with soft material such as copper or aluminum.
Set-up mold not too tight, allowance around + 0.03mm.
Do not disassembly unless necessary.
Please arrange numbers on the same side.
Technical Data
GUIDE PIN - GPA TYPE
MATERIAL: SUJ2
HARDNESS: HRC58°~
CAT. NO.: GPA
GUIDE PIN - GPB TYPE
MATERIAL: SUJ2
HARDNESS: HRC58°~
CAT. NO.: GPB
GUIDE PIN - GPB TYPE
MATERIAL: SUJ2
HARDNESS: HRC58°~
CAT. NO.: GPB
GUIDE BUSHING – (HEAD)
MATERIAL:SUJ2
HARDNESS:HRC58
CAT. NO.: GB-1
GUIDE BUSHING
MATERIAL: SUJ2
HARDNESS: HRC58°
CAT. NO.: GB-2
GUIDE BUSHING
MATERIAL: SUJ2
HARDNESS: HRC58°~
CAT. NO.: GB-5
MATERIAL: SCM435
HARDNESS: HRC33°~38°
Technical Data
CAT. NO.: PBA
A cooling pin is a high speed heat transfer device capable of conducting heat energy over 1000 times faster than copper. It is made of a copper tube or chamber whose inner surface is lined with a copper wick structure.
The copper tube is sealed and the air is evacuated, creating a vacuum. When heat is applied to one end of the cooling pin by an external source, the internal working fluid dissipates as vapor. The resulting difference in pressure drives the vapor from the heated end to colder areas where it condenses and releases all the heat energy with a high degree of thermal uniformity.
Introduction
Reduce cycle time; uniform cooling improves part quality.
Special lengths available upon request.
1/2"
20 - 110 Nm
+3%
Introduction
1 CMKG = 13.883 IN-OZ
1 Nm = 8.8507 IN-LB
1 dNm = 0.0553 IN-OZ
1 MKG = 7.233 FT-LB
1 MKG = 9.80665 Nm 1 CMKG = 0.098 Nm
1 CMKG = 0.08677 IN-LB
1 KpM = 1 MKG
1 Nm = 0.73756 FT-LB
Applications
Always follow available manufacturer's specifications for fastener torque settings.
Any assembly held together by a number of fasteners (such as the lug nuts on an automobile wheel) should be tightened according to manufacturer's specifications. If no specifications are available, it is recommended that fasteners be tightened in two or more stages. For example, first tighten each faster to 75% of the total torque to be applied, then reset the wrench and tighten to the full torque required. Finally, double check each fastener to make sure none were missed.
Never use a torque wrench on a fastener that is already tightened with a standard wrench or pocket. For accurate torque readings, the fastener must be loosened, then retightened to the desired torque.
Cat. No.: PBC-
Protects metal parts from corrosion and seizure to 2012 F(1100C).
Capacity: 450g.
Introduction
The Anti-Seize Lubricant is an exclusively formulated colloidal copper compound primarily used on metallic surfaces .
It prevents seizing and galling caused by heavy loads, vibration, corrosion and temperatures up to 2012 F (1100C).
Can be used on most metals, including cast iron, steel, stainless steel, nickel, copper, brass, bronze, titanium, aluminum, and monel.
Applications
INSTRUCTIONS: STIR WELL BEFORE USING.
For best results, remove dirt, oil and grease first.
Apply Anti-Seize lubricant to parts that require protection.
Wipe away excess lubricant. Protection of parts is now assured.
Introduction
Pressure to air line of air poppet valve and machine ejection should be activated at the same time. This allows valve to relieve negative pressure build up (vacuum) in the cavity during part ejection.
The air flow to the poppet valve must be fully relieved to the atmosphere after each cycle to insure that the poppet valve closes before the next injection cycle. Material injected into a partially open poppet valve could cause damage to the valve and /or the mold. Control valves and limit switches to be supplied by moldmaker and / or molder.
The air poppet valve should never be used as the sole means of part ejection. Material shrinkage and other factors will not allow it to be used as an alternative to ejector pins or stripper plates.
Cat. No.: TP-
Class " B" Insulation.
1/2in. x 66ft. (22yds,) x .007in.
12.7mm x 20.1m x 0.18mm
Introduction
High-temperature tape with thermosetting pressure-sensitive adhesive.
Operates at Class B (266 F) temperature.
Provides heat-stable insulation for furnace, oven controls, motor leads, and switches.
Splice heat-resistant wires in "hot-spot" areas.
Applications
Before utilizing the product, the user should determine the suitability of product for its intended use.
3M expressly disclaims the implied warranties of fitness for a particular purpose.
In no case shall 3M be liable under any legal theory, including but not limited to contract or strict liability, for any direct, indirect, special, incidental or consequential damages resulting from product use.
Resist water and oil.
It can be used in various uneven surface.
Technical Data
Maximum: Operating temperature is 250℉.
Counter: Non-resettable mechanical, 6-digit.
Introduction
Counter housing panel can be marked for easy identification.
Assembled detail as shown above.
Counter with screws can fixed to the mold.
Technical Data
The main function of the counter is to calculate the number of finished product.
Able to maintain by mold cycle.
Improve production efficiency through digital management.
Material: Glass-filled Nylon housing
Maximum: Operating temperature is 250℉ (120℃)
Counter: Non-resettable mechanical, 7-digit
Introduction
Counter housing panel can be marked for easy identification.
Assembled detail as shown above.
Counter with screws can fixed to the mold.
Technical Data
The main function of the counter is to calculate the number of finished product.
Able to maintain by mold cycle.
Improve production efficiency through digital management.
