Cartridge Heater

THOMAS CO., LTD. is the manufacturer, supplier, and exporter of Cartridge Heater. We have an advanced management center, a culture of shared principles, and a technology backbone. With years of experience in production and research techniques in this field, our skilled Merchandising & Quality Control division by whom we control the quality of production as per the client's standard. We can become a very trusted exporter, manufacturer, and supplier.

Share to：

Cartridge Heater

Model - Cartridge Heaters

NiCr 80/20 resistance wire
High purity magnesium oxide core
High purity compacted magnesium oxide
Stainless steel sheath
Ceramic end cap
Solid nickel conductors
Fiberglass-silicone insulated nickel leadwires
Tig welded bottom disc

Introduction
Computer generated manufacturing specifications, Nickel-Chromium resistance wire precisely wound on a Magnesium oxide core ensures efficient heat transfer.
Heavy wall sheath provides maximum protection against high temperature oxidation and corrosion.
To ensure heaters' lifespan: The bottom slug is TIG welded to the sheath to exclude contaminates, high-density cap seals are in place to resist contamination, and used high purity swaged Magnesium oxide.

Applications
Hot Runner Systems
Plastics Industry
Engineering Industry
Shoe Industry
Home Appliance Technology
Casting Industry
High Vacuum Aapplications
Packaging Machines

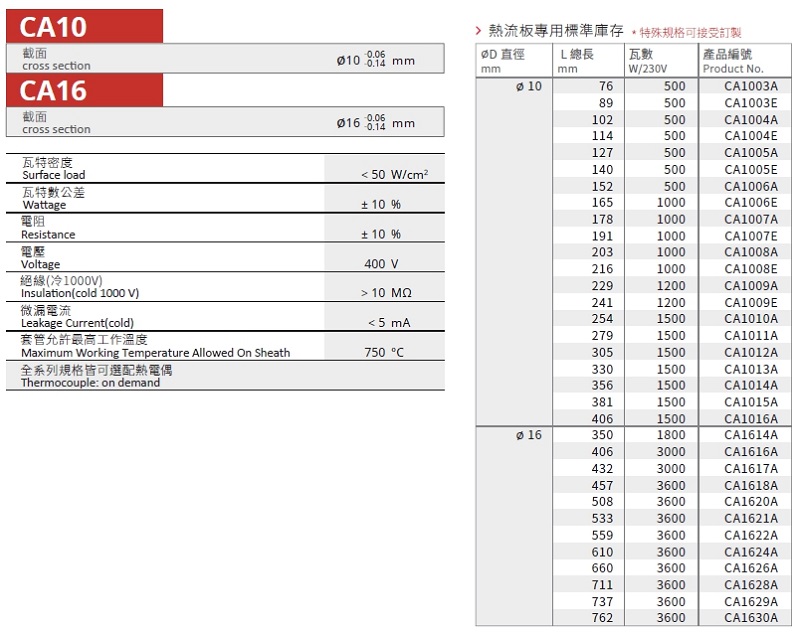

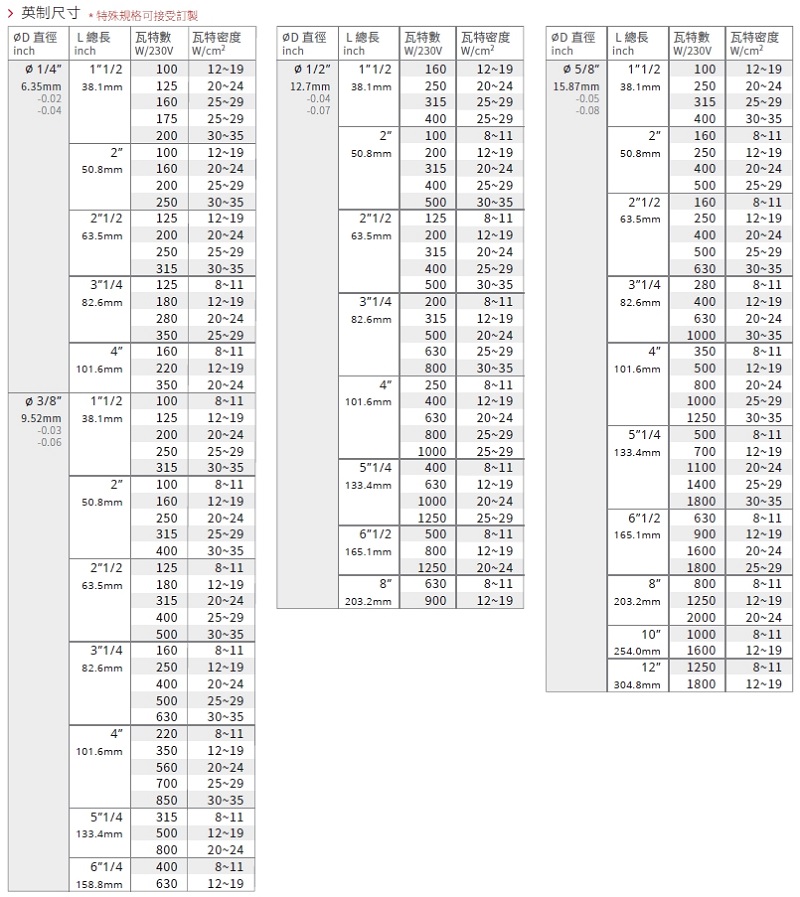

Technical Data

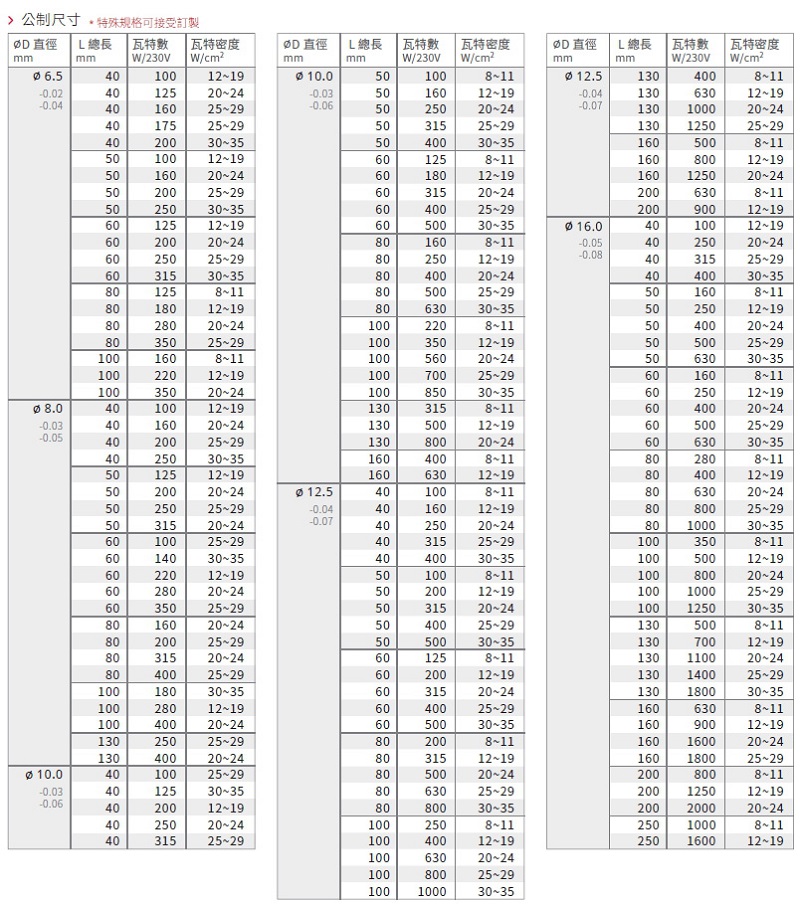

Standard Metric Type

Professional design of

Cartridge Heater

. Soft, comfortable, convenient, and safe. Different styles, different sizes, and different materials of heater can be chosen with high quality and the best price.
